testo 440 16 mm Vane Kit
Price RM3,251.00 RM4,270.00
Product SKU 0563 4401
Brand Testo
Size (L x W x H) 47 cm x 26 cm x 11 cm
Availability In Stock
Shipping Fee
Quantity
Description
Highlight
  • Intuitive: clearly structured measurement menu for volume flow and determination of air velocity in ventilation ducts
  • Convenient: integrated telescope that can be extended to 0.85 m, with scaling, makes it easy to carry out measurements
  • Reliable: internal data storage and USB port for data export
  • As multifaceted as your challenges themselves: the air velocity and IAQ measuring instrument can be expanded with a large portfolio of digital probes

Description

Product Description

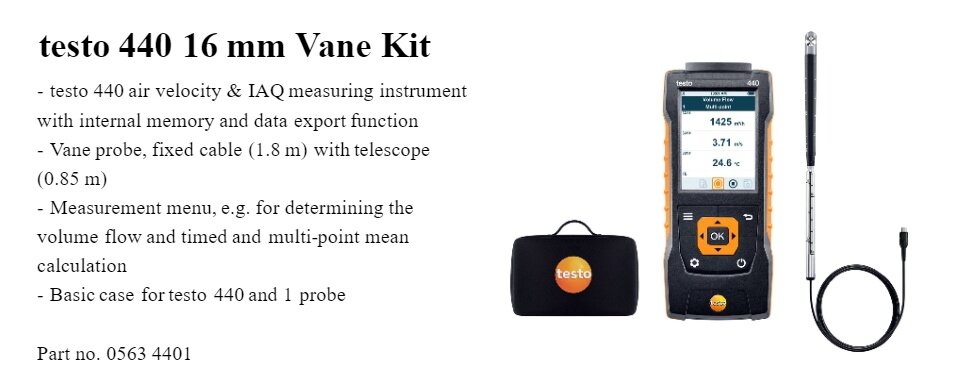

Kit for carrying out measurements in ventilation ducts: the testo 440 air velocity and IAQ measuring instrument and the vane probe (Ø 16 mm) are safely stowed away in the case. So you can get down to work straight away!

Delivery Scope

  • testo 440 air velocity and IAQ measuring instrument, 3 x AA batteries, USB cable and calibration protocol (0560 4401)
  • Vane probe (Ø 16 mm) with fixed cable (cable length 1.7 m), including telescope (can be extended to 0.85 m) and calibration protocol (0635 9532)
  • Basic case for testo 440 and 1 probe


Specification

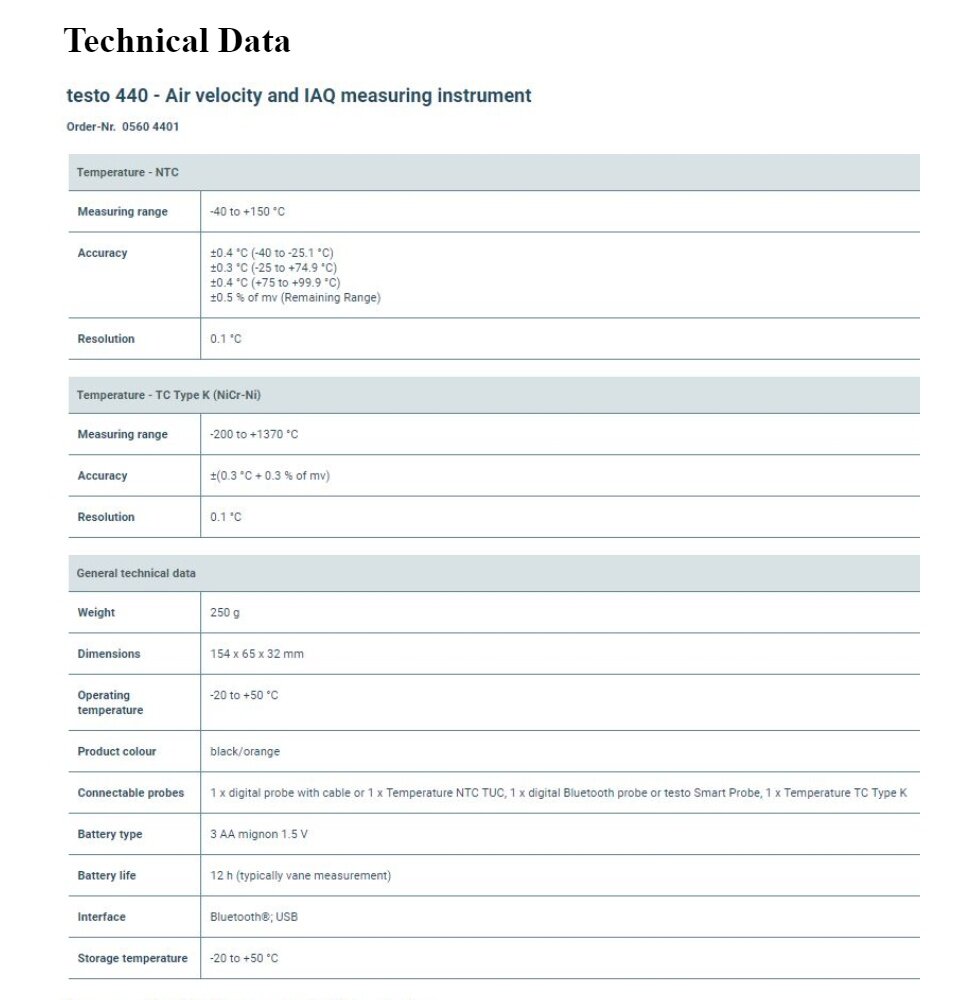

testo 440 - Air velocity and IAQ measuring instrument

Order-Nr.  0560 4401



Temperature - NTC

Measuring range

-40 to +150 °C

Accuracy

±0.4 °C (-40 to -25.1 °C)

±0.3 °C (-25 to +74.9 °C)

±0.4 °C (+75 to +99.9 °C)

±0.5 % of mv (Remaining Range)

Resolution

0.1 °C

Temperature - TC Type K (NiCr-Ni)

Measuring range

-200 to +1370 °C

Accuracy

±(0.3 °C + 0.3 % of mv)

Resolution

0.1 °C

General technical data

Weight

250 g

Dimensions

154 x 65 x 32 mm

Operating temperature

-20 to +50 °C

Product colour

black/orange

Connectable probes

1 x digital probe with cable or 1 x Temperature NTC TUC, 1 x digital Bluetooth probe or testo Smart Probe, 1 x Temperature TC Type K

Battery type

3 AA mignon 1.5 V

Battery life

12 h (typically vane measurement)

Interface

Bluetooth®; USB

Storage temperature

-20 to +50 °C

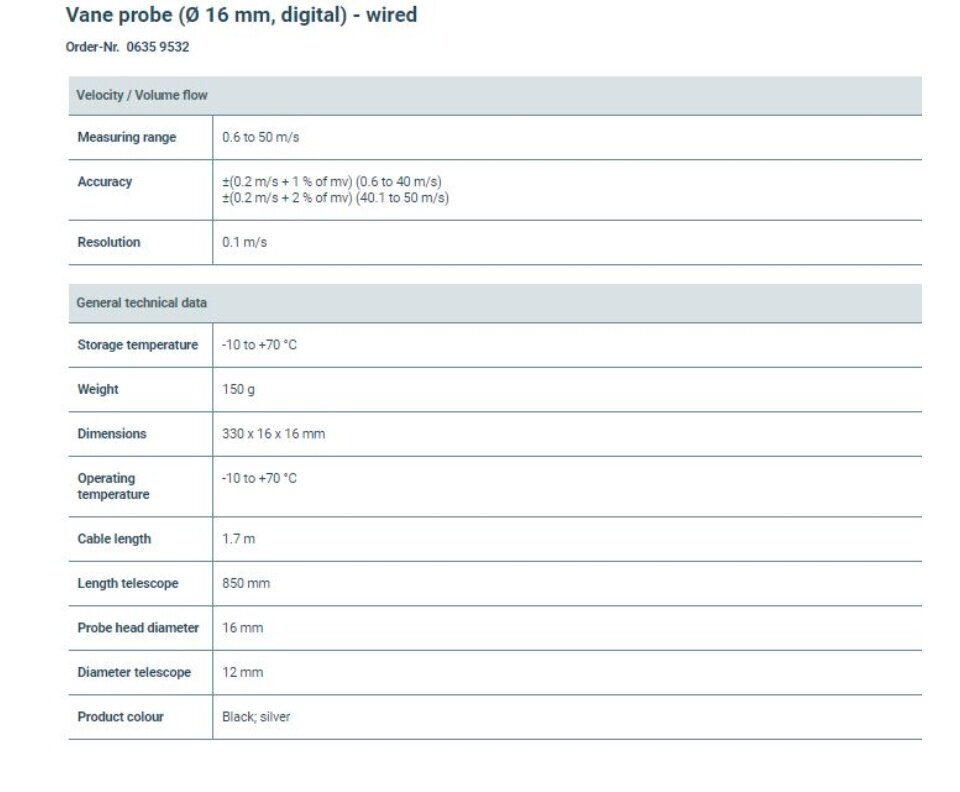

Vane probe (Ø 16m, digital) - wired

Order-Nr.  0635 9532

Velocity / Volume flow

Measuring range

0.6 to 50 m/s

Accuracy

±(0.2 m/s + 1 % of mv) (0.6 to 40 m/s)

±(0.2 m/s + 2 % of mv) (40.1 to 50 m/s)

Resolution

0.1 m/s

General technical data

Storage temperature

-10 to +70 °C

Weight

150 g

Dimensions

330 x 16 x 16 mm

Operating temperature

-10 to +70 °C

Cable length

1.7 m

Length telescope

850 mm

Probe head diameter

16 mm

Diameter telescope

12 mm

Product colour

Black; silver



Applications



Convenience and maximum flexibility for duct and outlet measurements

With our large range of air velocity probes (please order separately), you can carry out simple and convenient measurements even at locations that are difficult to access in ventilation ducts or at air outlets:
you will even find it easy to carry out measurements in particularly large ducts. This is because the extendable telescope on the hot wire and vane probe (Ø 16 mm) with universal handle can be further extended using the telescope extension – enabling you to attain a total length of 2 metres.
Carry out measurements at air/ceiling outlets effortlessly and without using a ladder. Fit your vane probe (Ø 100 mm) with the telescope with 90° angle and, if necessary, with the telescope extension (both can be ordered separately).
Greater freedom thanks to Bluetooth: the air velocity probes with Bluetooth have no inconvenient cable connection to the measuring instrument, and they transmit readings up to a distance of 20 m. Press the button on the probe to operate the measuring instrument – for example, to start and stop a series of measurements (timed mean calculation).
Attach the testo 440 air velocity and IAQ measuring instrument to metal surfaces (e.g. ducts) easily using the practical magnets.
Benefit from fast calculation of the volume flow: in the “volume flow” measurement menu of the multifunction measuring instrument, configure the dimensions and geometry of the duct cross-section – the measuring instrument shows you the volume flow straight away.

Volumetric flow measurement in ventilation ducts with vane probe (Ø 16 mm) and testo 440



Long-term monitoring of indoor air quality

Poor indoor air quality due to excessive concentrations of CO2 can cause tiredness, lack of concentration and even illness. With its menu for recording readings, the testo 440 air velocity and IAQ measuring instrument is ideal for monitoring the indoor air quality. Enter the measurement time and the measuring cycle – and, for example, track the change in CO2 concentration or humidity and temperature values over the course of the day. Simply choose between probes with Bluetooth or fixed cable for CO2, CO or humidity (please order probes separately).

Measure CO2 concentration for assessing indoor air quality with CO2 probe and testo 440



Turbulence measurement in accordance with EN ISO 7730 / ASHRAE 55

Determine the degree of turbulence and the draught risk in the workplace: draught restricts the comfort level and is the most common cause of complaints about the indoor climate. The turbulence probe (please order separately) measures air velocity and air temperature, and automatically calculates the draught risk and the degree of turbulence in accordance with EN ISO 7730/ASHRAE 55.
For convenient measurements at varying heights, we recommend using our measuring tripod for comfort level measurement (please order separately). This makes it very easy to position turbulence probes in compliance with the standards.

Determining the degree of turbulence with turbulence probe and testo 440



Range of probes for cleanrooms and laboratories

The testo 440 air velocity & IAQ measuring instrument is also ideal for a wide variety of applications in cleanrooms and laboratories in conjunction with the following probes:
  • High-precision flow measurement in fume cupboards with the fume cupboard probe
  • Thanks to the low start-up speed of 0.1 m/s, the high-precision vane probe (Ø 100 mm) is ideal for laminar flow measurements in cleanrooms. It is available as a variant with Bluetooth or with fixed cable
  • To measure the humidity in cleanrooms, we recommend the high-precision humidity/temperature probe (0636 9771 or 0636 9772). With an accuracy of ±(0.6 %RH + 0.7% of m.v.) (0 to 90 %RH), it also meets the requirements for humidity measurements in this particularly sensitive area
  • Use the high-precision digital Pt100 temperature probes, for example, for high-precision comparative measurements in calibration laboratories, temperature measurements in chemical laboratories or in the cosmetics industry as well as for determining the temperature distribution in refrigerators and conditioning cabinets

Volumetric flow measurement in fume cupboards with fume cupboard probe and testo 440
