testo 745 - Non-contact voltage tester

Price	RM185.00 RM244.00
Product SKU	0590 7450
Brand	Testo
Size (L x W x H)	25 cm x 10 cm x 4 cm
Availability	In Stock
Shipping Fee	Malaysia Starting from RM10.40

Quantity

Product
Description
Reviews (0)
What's in the box

Description

Highlight
								Voltage range up to 1,000 V
Waterproof and dustproof according to IP 67
Adjustable for phase detection or voltage indication
Visual and acoustic signal



Description

Product Description

The testo 745 non-contact voltage tester means you can quickly and easily determine voltage or de-energization. In contrast to most other models on the market, it has a filter for high-frequency interference signals which enables reliable voltage indication. If voltage is determined, the instrument gives a warning via a clear visual and acoustic signal.

The sensitivity of the instrument can be set in two stages: stage 1 for phase detection, stage 2 for voltage indication. The integrated torch also enables you to work safely in dark surroundings. In addition, the testo 745 voltage tester is both waterproof and dustproof according to IP 67.

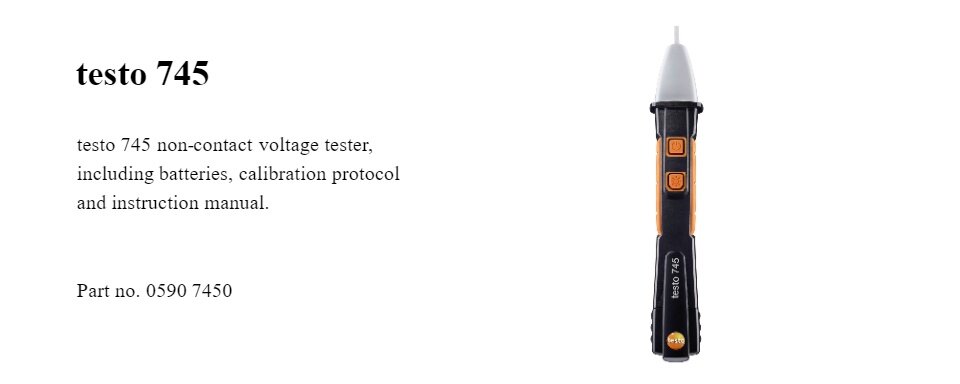

Delivery Scope

testo 745 non-contact voltage tester, including batteries, calibration protocol and instruction manual.

Specification

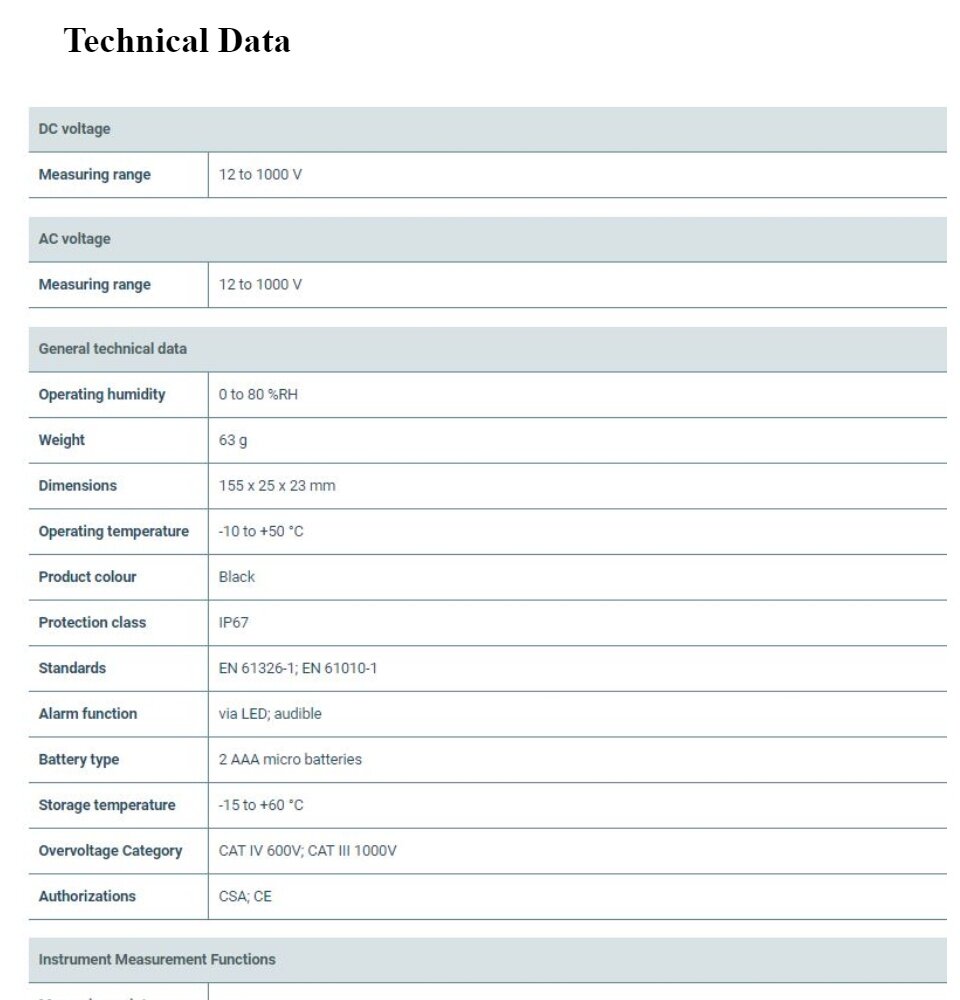

Technical Data

AC voltage
Measuring range	12 to 1000 V

General technical data
Operating humidity	0 to 80 %RH
Weight	63 g
Dimensions	155 x 25 x 23 mm
Operating temperature	-10 to +50 °C
Product colour	Black
Protection class	IP67
Standards	EN 61326-1; EN 61010-1
Alarm function	via LED; audible
Battery type	2 AAA micro batteries
Storage temperature	-15 to +60 °C
Overvoltage Category	CAT IV 600V; CAT III 1000V
Authorizations	CSA; CE

Instrument Measurement Functions

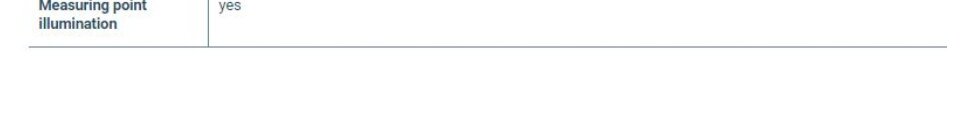

Measuring point illumination	yes

Applications

Ideal for voltage testing

Voltage range up to 1000 V, filter for high-frequency interference signals, waterproof and dustproof according to IP 67, adjustable sensitivity (2 levels), visual and acoustic signal, integrated torch for measuring point illumination

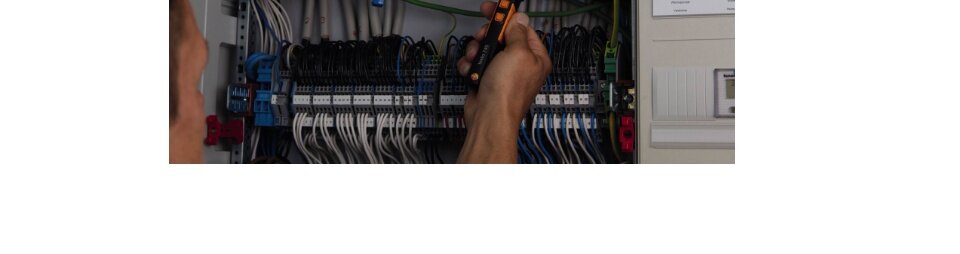

Overview of applications

Non-contact voltage testing
Searching for cable breakages
Locating live and neutral wires

testo 745

Download

Product Brochure

Data sheet testo 745 (PDF, 214 KB)

Reviews (0)

view all

back

0 reviews

What's in the box

testo 745 non-contact voltage tester, including batteries, calibration protocol and instruction manual.
